Ẹrọ idanimọ oju

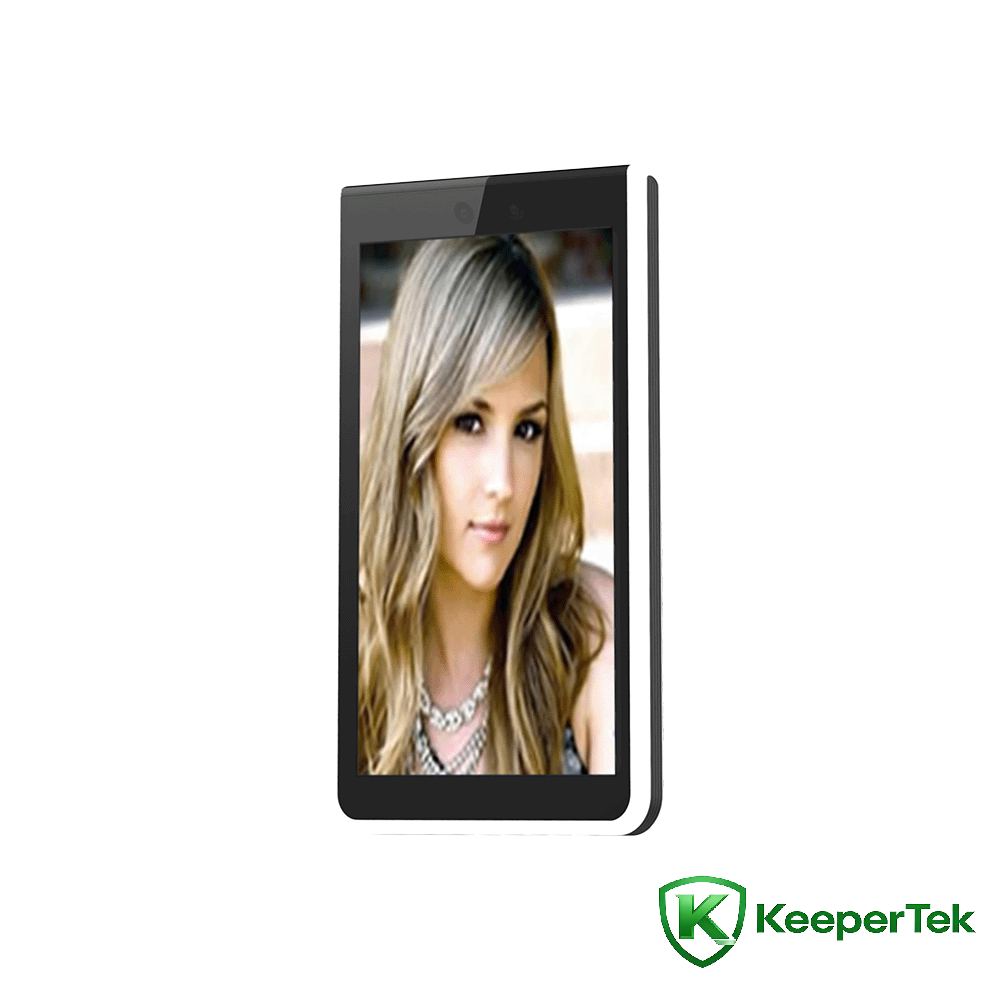

8inch oju da fẹlẹ Ultra-tinrin kaadi gbogbo-ni-ọkan ẹrọ KT- FR011

Imọ paramita

Oluṣeto: Chip YiZhi ti inu, ero isise-meji + 1G iranti + 16G EMMC

Eto iṣẹ: ẹrọ ṣiṣe Linux

Ibi ipamọ: Ṣe atilẹyin ibi ipamọ kaadi TF (aṣayan)

Kamẹra: Binocular, 2.1 milionu awọn piksẹli to munadoko, 1920*1080

Ẹrọ aworan: 1/2.8" Onitẹsiwaju wíwo CMOS

Lẹnsi: 4.5mm ifojusi ipari

WiFi module: 2.4GHz igbohunsafẹfẹ band, IEEE802 b/g/n bèèrè； 5GHz igbohunsafẹfẹ band, IEEE802 a/n/ac Ilana

Awọn oriṣi kaadi ti o le ra: mifare ọkan (M1), S50, S70, NTAG2xx ati awọn kaadi iye igbohunsafẹfẹ 13.56MHz miiran, TK, EM ati jara miiran awọn kaadi igbohunsafẹfẹ 125KHz (IC/ID ni atilẹyin)

Agbọrọsọ: Akoonu ṣiṣiṣẹsẹhin ohun le jẹ adani

Giga idanimọ: 1.2 ~ 2.3 mita, igun adijositabulu

Ijinna idanimọ: 0.5 ~ 2.5 mita

Igun oju: 30 iwọn osi ati ọtun, 30 iwọn si oke ati isalẹ

Akoko idanimọ: kere ju 0.3 aaya

Agbara ipamọ: 160,000 awọn igbasilẹ aworan

Agbara oju: 24,000

Iṣagbewọle agbara: DC12V/2A

Ni wiwo Nẹtiwọọki: 1 RJ45 10M/100M ibudo Ethernet adaptive, ibudo nẹtiwọki Gigabit asefara

Wiegand ni wiwo: 1 Wiegand ni wiwo o wu, 1 Wiegand ni wiwo input

Itaniji ni wiwo: 1-ọna ina itaniji input

Enu sensọ wiwo: 1 enu sensọ ni wiwo input

Ni wiwo ṣiṣi ilẹkun: 1 ẹnu-ọna ṣiṣi ni wiwo wiwo

Ni wiwo Doorbell: 1 ẹnu-ọna wiwo ẹnu-ọna

Ni wiwo titiipa ilẹkun: 1 ẹnu-ọna titiipa ni wiwo jade

Ni wiwo ibaraẹnisọrọ: 1 RS485 ibaraẹnisọrọ ni wiwo

USB ni wiwo: 1 USB ni wiwo

Kamẹra: Kamẹra binocular, lẹnsi gilaasi gbogbo, ina ti o han ati infurarẹẹdi-sunmọ, ṣe atilẹyin wiwa ara laaye

Awọn piksẹli to munadoko: 2.1 million awọn piksẹli to munadoko, 1920*1080

Imọlẹ ti o kere julọ: awọ 0.01Lux @ F1.2 (ICR); dudu ati funfun 0.001Lux @F1.2 (ICR)

Ipin ifihan agbara-si-ariwo: ≥50db (AGC PA)

Ibiti o ni agbara jakejado: 120db, ISP algorithm apakan ifihan ti oju

Fidio fifidi: H.265 Ifaminsi Profaili akọkọ/H.264 BP/MP/HP fifi koodu/MJPEG fifi koodu

Ṣiṣẹ otutu: -20℃-55℃

Ọriniinitutu ti n ṣiṣẹ: 0 ~ 90% ọriniinitutu ojulumo, ko si condensation

Agbara ohun elo: 20W (MAX)

Ipele sokiri iyọ: Rp6 tabi loke

Antistatic: olubasọrọ ± 6KV, afẹfẹ ± 8KV

Ipese agbara: DC12V/2A

Ipele aabo: IP42

Awọn pato iboju: 8-inch giga-definition IPS iboju

Iwọn ohun elo: 215.22 * 130 * 18mm

Awọn ẹya ara ẹrọ

Ṣe atilẹyin wiwa binocular ifiwe ara

Ṣe atilẹyin ipasẹ oju ati ifihan ti awọn eniyan gbigbe ni awọn agbegbe ina ẹhin to lagbara

algorithm idanimọ oju alailẹgbẹ, ṣe idanimọ awọn oju ni deede, akoko idanimọ oju ko kere ju 0.3s

-Itumọ ti ni abele Sipiyu

Lilo ẹrọ ṣiṣe LINUX, eto naa jẹ iduroṣinṣin

H.265 fifi koodu kika ṣiṣan fidio ti wa ni taara sopọ si NVR ati awọn miiran ipamọ awọn ẹrọ nipasẹ ONVIF Ilana ati GB28181 Ilana.

Ṣe atilẹyin ibi ipamọ agbegbe ni kaadi TF, pẹlu ibi ipamọ igbagbogbo ti awọn aworan fun ọdun 1 ati awọn fidio fun oṣu 1 tabi ju bẹẹ lọ (da lori agbara ti kaadi TF aṣayan)

Itumọ akoko ṣiṣiṣẹ laarin awọn ikuna MTBF · 50000h

Ṣe atilẹyin awọn ile-ikawe afiwe oju 24,000+ ati awọn igbasilẹ idanimọ 160,000

Awọn ilana wiwo wiwo ọlọrọ, atilẹyin TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, Awọn ilana MQTT labẹ Windows/Linux ati awọn iru ẹrọ miiran

Ṣiṣẹ otutu: -20℃-55℃

Ṣe atilẹyin itaniji egboogi-tamper

Ṣe atilẹyin ohun docking ati intercom awọsanma fidio

Ṣe atilẹyin iboju ifọwọkan iwaju-ipari iṣakoso ati iṣeto ni

Awọn atọkun ohun elo ọlọrọ (I/O, WG26, WG34, RJ45, USB, sensọ ilẹkun, agogo ilẹkun, ṣiṣi ilẹkun, itaniji, RS485)

8-inch IPS ni kikun wiwo HD àpapọ, ko si smearing tabi idaduro ni awọn aworan

Ere aifọwọyi ati iwọntunwọnsi funfun aifọwọyi gba awọ otitọ ti aworan naa pada ni ti ara

Sensọ ipele ina dudu ti a ṣe sinu igbẹhin fun iwo-kakiri fidio, idanimọ ina kekere deede diẹ sii

Idinku ariwo 3D ati imọ-ẹrọ ilaluja kurukuru jẹ ki awọn aworan ibojuwo labẹ itanna kekere ti o ṣalaye ati alaye diẹ sii

Ṣiṣan koodu atilẹyin ati awọn eto aarin fireemu

Ṣe atilẹyin idinamọ apakan ti agbegbe fidio

Ṣe atilẹyin koodu ROI

Iwontunwonsi funfun aifọwọyi, iwọntunwọnsi funfun ọwọ wa

Ṣe atilẹyin eto akoko ifihan ti o pọju

Ṣe atilẹyin awọn eto ibojuwo foonu alagbeka

Ṣe atilẹyin idinku ariwo 2D ati idinku ariwo 3D

Ṣe atilẹyin akoko akoko igbasilẹ igbasilẹ ati awọn eto ọna ikojọpọ

Ṣe atilẹyin imọlẹ fidio, itansan, hue, saturation, ati atunṣe gamma

Ṣe atilẹyin eto akoko ifihan aifọwọyi ti o pọju

Ṣe atilẹyin oju ifihan oye ati koju awọn eto imudara oye
