Ẹrọ idanimọ oju

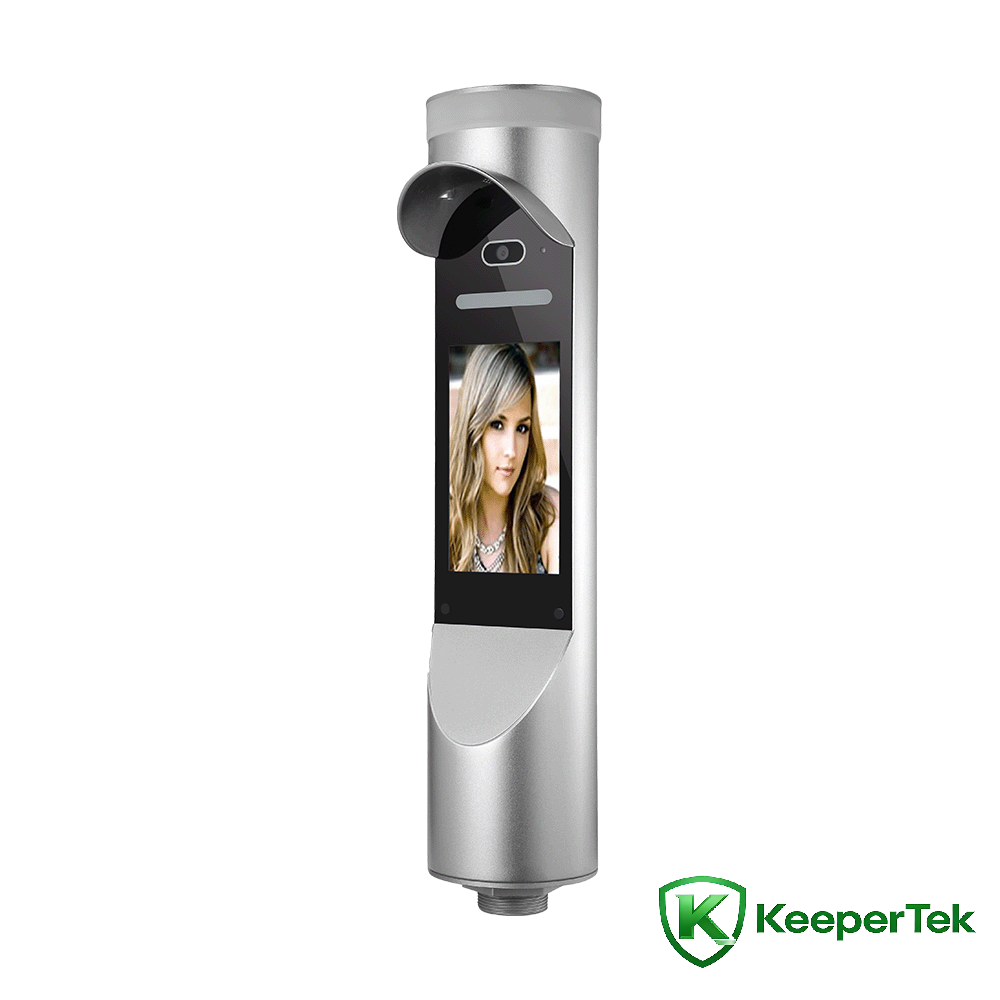

7iyipo eniyan Oju Ti idanimọ gbogbo-ni-ọkan ẹrọ KT- FR014

Imọ paramita

isise: Meji-Core ARM Cortex-A7, @1.0GHz

Eto iṣẹ: ẹrọ ṣiṣe Linux

Ibi ipamọ: 8GB EMMC

Kamẹra: Binocular, 2.1 milionu awọn piksẹli to munadoko, 1920*1080

Ẹrọ aworan: 1/2.8" Onitẹsiwaju wíwo CMOS

Awọn lẹnsi: 6mm

Agbọrọsọ: boṣewa, akoonu ṣiṣiṣẹsẹhin ohun le jẹ adani

Giga idanimọ: 1.2 ~ 2.2 mita, igun adijositabulu

Ijinna idanimọ: 0.3 ~ 1.5 mita, oniyipada da lori lẹnsi

Igun oju: 30 iwọn osi ati ọtun, 30 iwọn si oke ati isalẹ

Akoko idanimọ: kere ju awọn aaya 0.5

Agbara oju: 20,000

Agbara ipamọ: 60,000 awọn igbasilẹ aworan

Ni wiwo ibaraẹnisọrọ: RJ45 ibudo Ethernet adaptive (le ṣe atilẹyin WiFi ti adani)

Iṣakoso ni wiwo: yi pada o wu

Wiegand ni wiwo: 1 Wiegand ni wiwo input, 1 Wiegand ni wiwo o wu

USB ni wiwo: 1 USB ni wiwo bi ẹrọ

Ni wiwo ibaraẹnisọrọ: 1 RS485 ibaraẹnisọrọ ni wiwo

Kamẹra: Kamẹra binocular, ina ti o han, ṣe atilẹyin wiwa ara laaye

Awọn piksẹli to munadoko: 2.1 million awọn piksẹli to munadoko, 1920*1080

Imọlẹ ti o kere julọ: awọ 0.01Lux @ F1.2 (ICR); dudu ati funfun 0.001Lux @F1.2 (ICR)

Ipin ifihan agbara-si-ariwo: ≥50db (AGC PA)

Ipinnu iboju: 480*800

Ṣiṣẹ otutu: -30 ℃ - +60℃

Ọriniinitutu ti n ṣiṣẹ: 0 ~ 90% ọriniinitutu ojulumo, ko si condensation

Agbara ohun elo: 10W (MAX)

Ipele sokiri iyọ: Rp6 tabi loke

Antistatic: olubasọrọ ± 6KV, afẹfẹ ± 8KV

Ipese agbara: DC12V/2A

Dabaru Iho opin: 47mm

Anti-riot ipele: IK06

Ipele aabo: IP65

Iboju ni pato: 7-inch ga-definition RGB àpapọ

Iwọn ohun elo: 519 (ipari) * 118 (iwọn) * 118 (sisanra) mm

Awọn ẹya ara ẹrọ

Ṣe atilẹyin wiwa binocular ifiwe ara

Ṣe atilẹyin ipasẹ oju ati ifihan ti awọn eniyan gbigbe ni awọn agbegbe ina ẹhin to lagbara

algorithm idanimọ oju alailẹgbẹ, ṣe idanimọ awọn oju ni deede, akoko idanimọ oju ko kere ju 0.5s

-Itumọ ti ni abele Sipiyu

Lilo ẹrọ ṣiṣe LINUX, eto naa jẹ iduroṣinṣin

Itumọ akoko ṣiṣiṣẹ laarin awọn ikuna MTBF · 50000h

Ṣe atilẹyin to awọn ile-ikawe afiwe oju 20,000+ ati awọn igbasilẹ idanimọ 60,000

Awọn ilana wiwo wiwo ọlọrọ, atilẹyin TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, Awọn ilana MQTT labẹ Windows/Linux ati awọn iru ẹrọ miiran

Ṣiṣẹ otutu: -30 ℃-60℃

IP66 mabomire ati eruku

Ṣe atilẹyin ifamọ ina

Awọn atọkun hardware ọlọrọ (I/O, WG26, WG34, RJ45, USB, RS485)

Ifihan RGB giga-inch giga 7, ko si smearing tabi idaduro ni awọn aworan
