Ẹrọ idanimọ oju

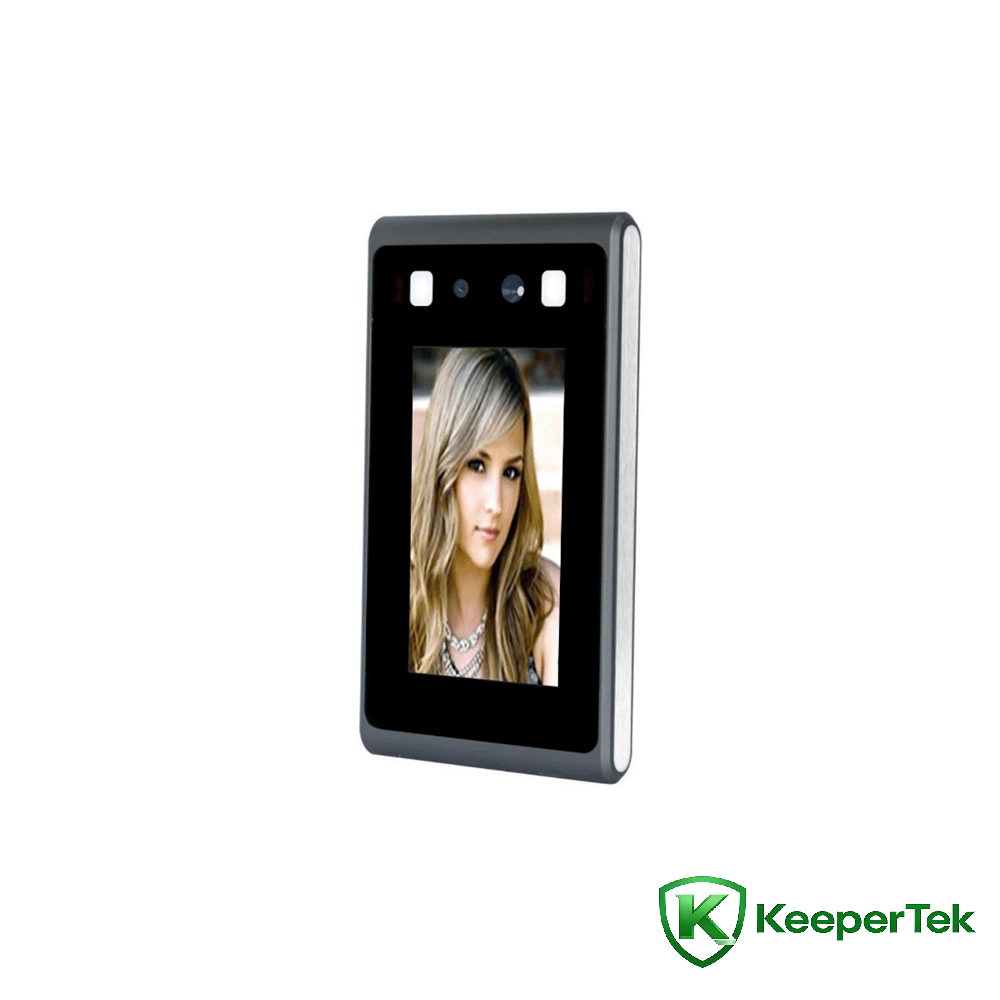

4.3inch eniyan Oju da fẹlẹ Kaadi ese ẹrọ KT- FR002

Imọ paramita

isise: Meji-Core ARM Cortex-A7, @1.0GHz

Eto iṣẹ: ẹrọ ṣiṣe Linux

Ibi ipamọ: Ṣe atilẹyin ibi ipamọ kaadi TF (aṣayan)

Kamẹra: Binocular, 2.1 milionu awọn piksẹli to munadoko, 1920*1080

Ẹrọ aworan: 1/2.8" Onitẹsiwaju wíwo CMOS

Awọn lẹnsi: 4.5mm

Module swiping kaadi: iyan, 13.56MHz, ID kaadi nọmba ni tẹlentẹle, Mifare, NFC

Module Wifi: boṣewa IEEE 802.11b/g/n, ṣe atilẹyin iye igbohunsafẹfẹ 2.4GHz, iwọn iyara 1Mbps-150Mbps

Iboju ifọwọkan: atilẹyin, capacitive olona-ifọwọkan iboju

Agbọrọsọ: boṣewa, akoonu ṣiṣiṣẹsẹhin ohun le jẹ adani

Giga idanimọ: 1.2 ~ 2.2 mita, igun adijositabulu

Ijinna idanimọ: 0.3 ~ 1.5 mita

Igun oju: 30 iwọn osi ati ọtun, 30 iwọn si oke ati isalẹ

Akoko idanimọ: kere ju awọn aaya 0.5

Agbara ipamọ: 60,000 awọn igbasilẹ aworan

Agbara oju: 20,000

Iṣagbewọle agbara: DC12V/2A

Nẹtiwọọki ni wiwo: 1 RJ45 10M / 100M adaptive àjọlò ibudo

Wiegand ni wiwo: 1 Wiegand ni wiwo o wu, 1 Wiegand ni wiwo input

Itaniji wiwo: 1 ina itaniji input, 1 itaniji wu

Enu sensọ wiwo: 1 enu sensọ ni wiwo input

Ni wiwo ṣiṣi ilẹkun: 1 ẹnu-ọna ṣiṣi ni wiwo wiwo

Ni wiwo Doorbell: 1 ẹnu-ọna wiwo ẹnu-ọna

Ni wiwo titiipa ilẹkun: 1 ẹnu-ọna titiipa ni wiwo jade

Ni wiwo ibaraẹnisọrọ: 1 RS485 ibaraẹnisọrọ ni wiwo

Kamẹra: Kamẹra binocular, lẹnsi gilasi gbogbo, ina ti o han ati infurarẹẹdi-sunmọ, ṣe atilẹyin wiwa ara laaye

Awọn piksẹli to munadoko: 2.1 million awọn piksẹli to munadoko, 1920*1080

Imọlẹ ti o kere julọ: awọ 0.01Lux @ F1.2 (ICR); dudu ati funfun 0.001Lux @F1.2 (ICR)

Ipin ifihan agbara-si-ariwo: ≥50db (AGC PA)

Ipinnu iboju: 480*272

Ṣiṣẹ otutu: -20 ℃ - +55℃

Ọriniinitutu ti n ṣiṣẹ: 0 ~ 90% ọriniinitutu ojulumo, ko si condensation

Agbara ohun elo: 10W (MAX)

Ipele sokiri iyọ: Rp6 tabi loke

Antistatic: olubasọrọ ± 4KV, afẹfẹ ± 8KV

Ipese agbara: DC12V/2A

Ipele aabo: IP42

Iboju ni pato: 4.3-inch capacitive olona-ifọwọkan iboju

Iwọn ohun elo: 160 (ipari) * 88 (iwọn) * 17 (sisanra) mm

Awọn ẹya ara ẹrọ

Ṣe atilẹyin wiwa binocular ifiwe ara

Ṣe atilẹyin ipasẹ oju ati ifihan ti awọn eniyan gbigbe ni awọn agbegbe ina ẹhin to lagbara

algorithm idanimọ oju alailẹgbẹ, ṣe idanimọ awọn oju ni deede, akoko idanimọ oju ko kere ju 0.5s

-Itumọ ti ni abele Sipiyu

Lilo ẹrọ ṣiṣe LINUX, eto naa jẹ iduroṣinṣin

Itumọ akoko ṣiṣiṣẹ laarin awọn ikuna MTBF · 50000h

Ṣe atilẹyin to awọn ile-ikawe afiwe oju 20,000+ ati awọn igbasilẹ idanimọ 60,000

Ṣiṣẹ otutu: -20℃-55℃

Inu ile IP42 mabomire ati eruku

Ṣe atilẹyin itaniji egboogi-tamper

Ṣe atilẹyin ohun igbewọle gbohungbohun ati ohun afetigbọ agbohunsoke

Awọn atọkun ohun elo ọlọrọ (I/O, WG26, WG34, RJ45, sensọ ilẹkun, agogo ilẹkun, ṣiṣi ilẹkun, itaniji, RS485)

4.3-inch capacitive olona-ifọwọkan iboju, ko si image smear tabi idaduro
