Ẹrọ idanimọ oju

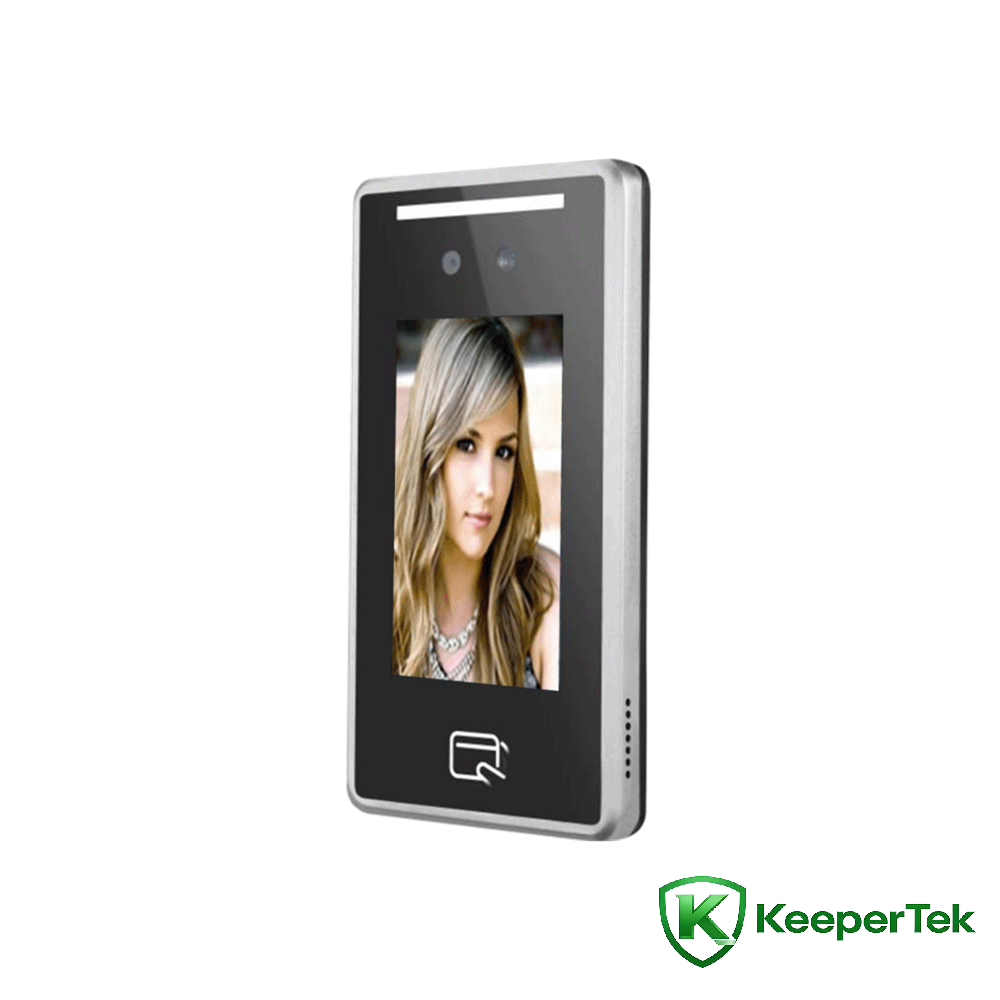

4.3inch eniyan Oju da fẹlẹ Kaadi ese ẹrọ KT- FR003

Imọ paramita

isise: Meji-Core ARM Cortex-A7, @1.0GHz

Ibi ipamọ: Àgbo: 256MB ROM: 8GB

Eto iṣẹ: ẹrọ ṣiṣe Linux

Lẹnsi: 4.32mm ifojusi ipari

Module swiping kaadi: 13.56MHz ga-igbohunsafẹfẹ kaadi swiping module, atilẹyin ISO/IEC 14443 TypeA, atilẹyin kika IC awọn kaadi

Ethernet: ibudo Ethernet 100M, ni ibamu pẹlu boṣewa IEEE802.3/802.3u, ṣe atilẹyin awọn ilana IPV4 ati IPV6

Module Wifi: Ibaraẹnisọrọ WiFi-igbohunsafẹfẹ 2.4GHz ẹyọkan, ṣe atilẹyin ilana 802.11 b/g, oṣuwọn ti o pọju 54Mbps

Module Bluetooth: BT 4.2 Ọna Iṣatunṣe: DPSK, DQPSK, Oṣuwọn Gbigbe GFSK: 1Mbps ~ 3Mbps

Iboju: 4.3-inch IPS LCD iboju

Fọwọkan: Ifọwọkan Capacitive

Agbọrọsọ: ariwo ohun adijositabulu, agbara 1W

Ijinna idanimọ: 0.3 ~ 1.5 mita

Igun oju: 30 iwọn osi ati ọtun, 30 iwọn si oke ati isalẹ

Akoko idanimọ: kere ju awọn aaya 0.5

Agbara oju: 1000

Agbara igbasilẹ: 70,000 igbasilẹ

Iṣagbewọle agbara: DC12V/2A

Ni wiwo nẹtiwọki: 1 100M àjọlò ibudo

Wiegand ni wiwo: 1 Wiegand o wu

Itaniji wiwo: 1 ikanni titẹ sii itaniji

Enu sensọ wiwo: 1 enu sensọ input

Ni wiwo ṣiṣi ilẹkun: 1 ẹnu-ọna ṣiṣi ẹnu-ọna

Ni wiwo ibaraẹnisọrọ: 1 RS485 ibaraẹnisọrọ ni wiwo

USB ni wiwo: 1 USB2.0 Iru A ni wiwo

Kamẹra: Kamẹra binocular, ina ti o han ati infurarẹẹdi-sunmọ, ṣe atilẹyin wiwa ara laaye

Awọn piksẹli to munadoko: 2.1 milionu awọn piksẹli to munadoko

Imọlẹ ti o kere julọ: awọ 0.01Lux @ F1.2 (ICR); dudu ati funfun 0.001Lux @F1.2 (ICR)

Ipin ifihan agbara-si-ariwo: ≥50db (AGC PA)

Ibiti o ni agbara jakejado: 100db, ISP algorithm apakan ifihan ti oju

Iwọn otutu iṣẹ: -10 ℃ si +50℃

Ọriniinitutu ṣiṣẹ: 10% ~ 90% ọriniinitutu ojulumo, ko si isunmọ

Agbara ohun elo: 10W (MAX)

ESD: olubasọrọ ± 4KV, afẹfẹ ± 6KV

Ipele aabo: IP42

Ipese agbara: DC12V/2A

Iwọn ọja: 173.5 * 90.0 * 24.0 (mm)

Awọn ẹya ara ẹrọ

Ṣe atilẹyin wiwa binocular ifiwe ara

·Ṣe atilẹyin ipasẹ oju ati ifihan ti awọn eniyan gbigbe ni awọn agbegbe ina ẹhin to lagbara

·algorithm idanimọ oju alailẹgbẹ, ṣe idanimọ awọn oju ni deede, akoko idanimọ oju ko kere ju 0.5s

·-Itumọ ti ni abele Sipiyu

·Lilo ẹrọ ṣiṣe LINUX, eto naa jẹ iduroṣinṣin

·Itumọ akoko ṣiṣiṣẹ laarin awọn ikuna MTBF · 50000h

·Ṣiṣẹ otutu: -10 ℃- +50℃

·Ṣe atilẹyin iṣeto ẹrọ iwaju-ipari, iforukọsilẹ eniyan, ibeere alaye ati awọn iṣẹ miiran

·Awọn atọkun ohun elo ọlọrọ (USB2.0, titẹ sensọ ilẹkun, igbewọle ṣiṣi ilẹkun, igbewọle itaniji, iṣelọpọ Wiegand, ati bẹbẹ lọ)

·4.3-inch capacitive iboju ifọwọkan, ko si aworan smear tabi idaduro
