Ẹrọ idanimọ oju

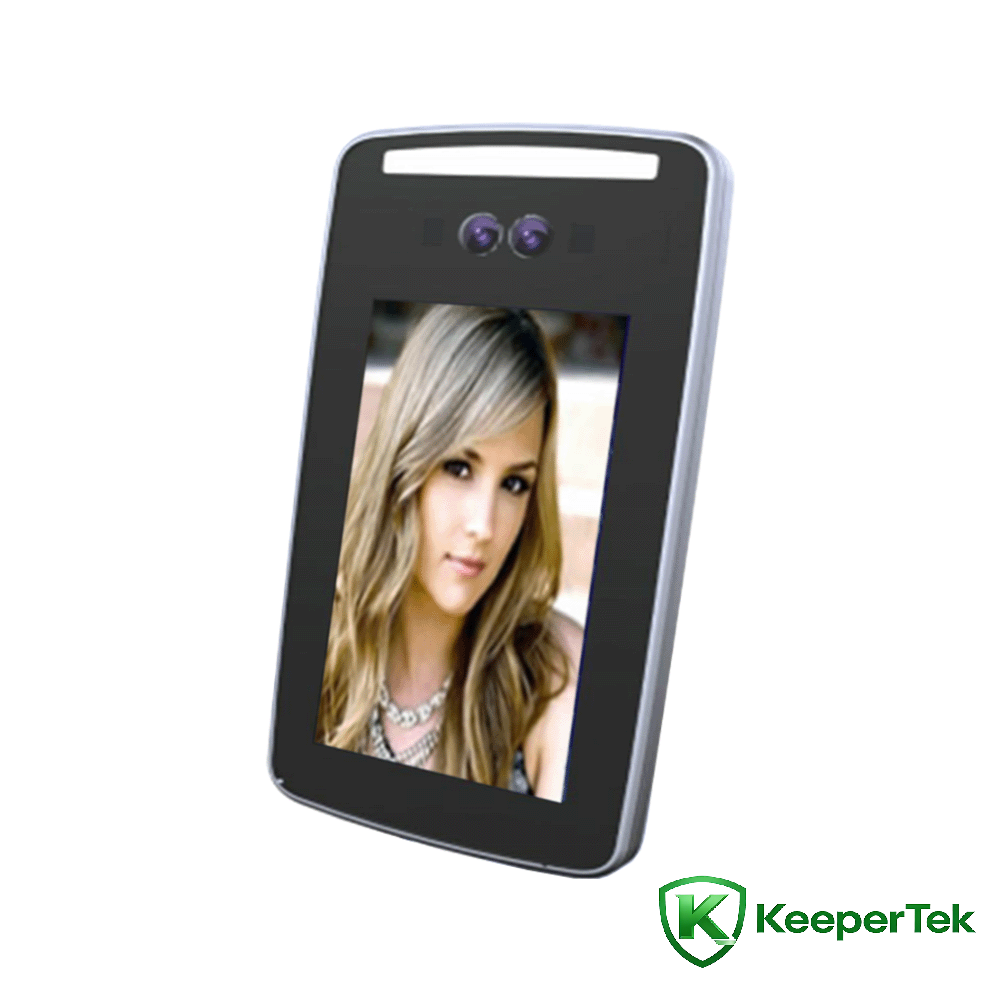

7inch eniyan Ti idanimọ oju gbogbo-ni-ọkan ẹrọ KT- FR005

Imọ paramita

isise: meji-mojuto ero isise + 1G iranti + 16G EMMC

Eto iṣẹ: ẹrọ ṣiṣe Linux

Ibi ipamọ: Ṣe atilẹyin ibi ipamọ kaadi TF

Kamẹra: Binocular, 2.1 milionu awọn piksẹli to munadoko, 1920*1080

Ẹrọ aworan: 1/2.8" Onitẹsiwaju wíwo CMOS

Awọn lẹnsi: 6mm

Agbọrọsọ: boṣewa, akoonu ṣiṣiṣẹsẹhin ohun le jẹ adani

Giga idanimọ: 1.2 ~ 2.2 mita, igun adijositabulu

Ijinna idanimọ: 0.5 ~ 1.5 mita, oniyipada da lori lẹnsi

Igun oju: 30 iwọn osi ati ọtun, 30 iwọn si oke ati isalẹ

Akoko idanimọ: kere ju awọn aaya 0.5

Agbara oju: 20,000

Agbara ipamọ: 60,000 awọn igbasilẹ aworan

Iyipada iyipada: Ijade iyipada 1, awọn ebute GPIO miiran le jẹ adani

Ni wiwo Nẹtiwọọki: 1 RJ45 10M/100M ibudo Ethernet adaptive, ibudo nẹtiwọki Gigabit asefara

Wiegand ni wiwo: 1 Wiegand ni wiwo input, 1 Wiegand ni wiwo o wu

USB ni wiwo: 1 USB ni wiwo bi ẹrọ

Ibaraẹnisọrọ ni wiwo: 1 RS485 ni wiwo

Kamẹra: Kamẹra binocular, ina ti o han ati infurarẹẹdi nitosi, ṣe atilẹyin wiwa ara laaye

Awọn piksẹli to munadoko: 2.1 million awọn piksẹli to munadoko, 1920*1080

Imọlẹ ti o kere julọ: awọ 0.01Lux @ F1.2 (ICR); dudu ati funfun 0.001Lux @F1.2 (ICR)

Ipin ifihan agbara-si-ariwo: ≥50db (AGC PA)

Ibiti o ni agbara jakejado: 100db, ISP algorithm apakan ifihan ti oju

Fidio fifidi: H.265 Ifaminsi Profaili akọkọ/H.264 BP/MP/HP fifi koodu/MJPEG fifi koodu

Iṣeto oju-iwe wẹẹbu: atilẹyin

Igbesoke latọna jijin ẹrọ: atilẹyin

Ọna imuṣiṣẹ: ṣe atilẹyin nẹtiwọọki gbogbogbo ati lilo LAN

Ṣiṣẹ otutu: -30 ℃ - +60℃

Ọriniinitutu ti n ṣiṣẹ: 0 ~ 90% ọriniinitutu ojulumo, ko si condensation

Ipele sokiri iyọ: Rp6 tabi loke

Antistatic: olubasọrọ ± 6KV, afẹfẹ ± 8KV

Ipese agbara: DC12V/2A

Anti-riot ipele: IK06

Ipele aabo: IP66

Agbara ẹrọ: 14.4W (MAX)

Iwọn ohun elo: 128 (iwọn) * 28 (sisanra) * 240 (giga) mm

Awọn ẹya ara ẹrọ

Ṣe atilẹyin wiwa binocular ifiwe ara

Ṣe atilẹyin ipasẹ oju ati ifihan ti awọn eniyan gbigbe ni awọn agbegbe ina ẹhin to lagbara

algorithm idanimọ oju alailẹgbẹ, ṣe idanimọ awọn oju ni deede, akoko idanimọ oju ko kere ju 0.5s

 -Itumọ ti ni abele Sipiyu

Lilo ẹrọ ṣiṣe LINUX, eto naa jẹ iduroṣinṣin

Itumọ akoko ṣiṣiṣẹ laarin awọn ikuna MTBF · 50000h

Ṣe atilẹyin awọn ile-ikawe afiwe oju 20,000 ati awọn igbasilẹ idanimọ 60,000

Awọn ilana wiwo wiwo ọlọrọ, atilẹyin TCP/IP, UDP, HTTP, DNS, DHCP, Awọn ilana MQTT labẹ Windows/Linux ati awọn iru ẹrọ miiran · Iwọn otutu ṣiṣẹ: -30℃-60℃

IP66 mabomire ati eruku

 Sensọ awọn fọto ti a ṣe sinu, ṣatunṣe adaṣe kikun kikankikan

Awọn atọkun hardware ọlọrọ (I/O, WG26, WG34, RJ45, RS485)

7-inch IPS ni kikun wiwo HD àpapọ, ko si smearing tabi idaduro ni awọn aworan
