Ẹrọ idanimọ oju

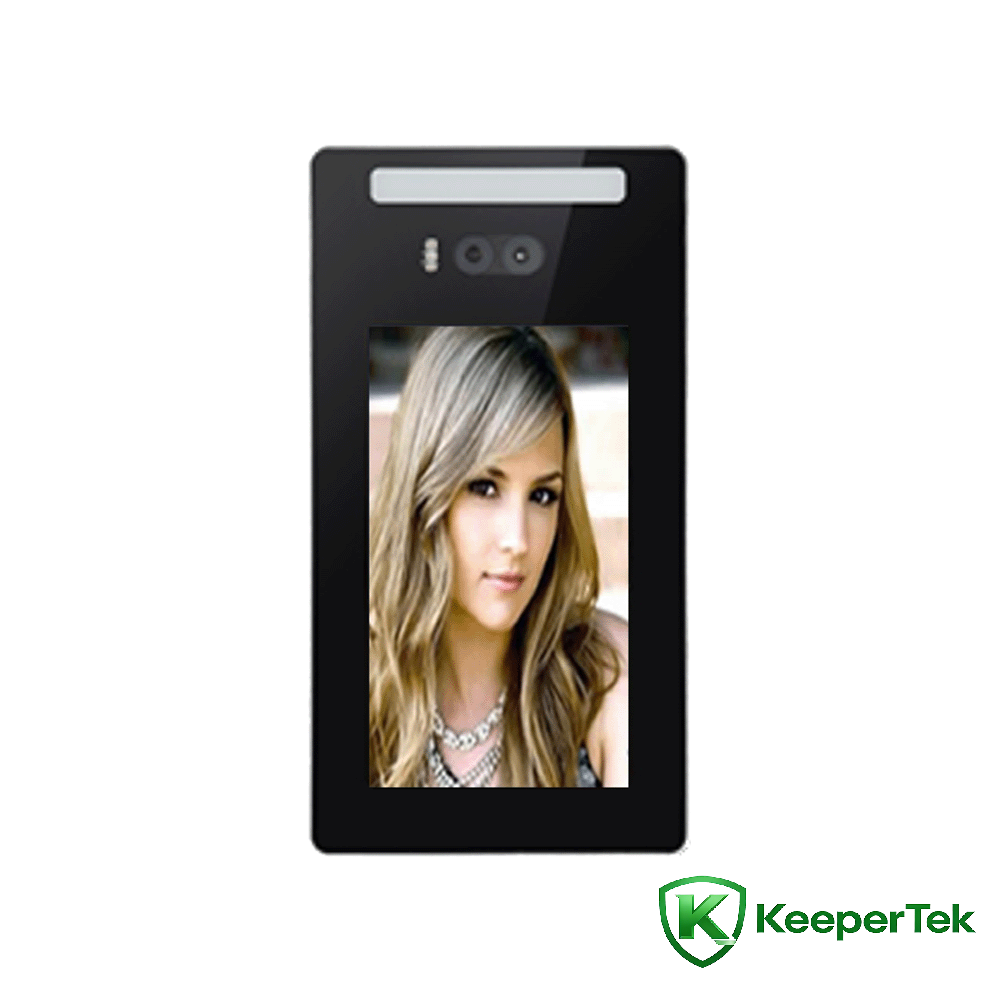

7inch eniyan Ti idanimọ oju gbogbo-ni-ọkan ẹrọ KT- FR006

isise: Meji-mojuto ARM Cortex-A7

Eto iṣẹ: ẹrọ ṣiṣe Linux

Ibi ipamọ: 1GB Ramu + 8GB eMMC

Kamẹra: Binocular, 2.1 milionu awọn piksẹli to munadoko, 1920*1080

Ẹrọ aworan: 1/2.8" Onitẹsiwaju wíwo CMOS

Awọn lẹnsi: 6mm

Module swiping kaadi (iyan): 13.56MHz, ṣe atilẹyin Mifare S50, awọn kaadi S70, awọn kaadi ultralinght, awọn kaadi NTAG, DESFire D21, D41, D81, awọn kaadi Sipiyu ti kii ṣe olubasọrọ

Module Wifi (aṣayan): Iwọn igbohunsafẹfẹ 2.4GHz, Ilana IEEE802 b/g/n； 5GHz igbohunsafẹfẹ band, IEEE802 a/n/ac Ilana

Agbọrọsọ: boṣewa, akoonu ṣiṣiṣẹsẹhin ohun le jẹ adani

Giga idanimọ: 1.2 ~ 2.2 mita, igun adijositabulu

Ijinna idanimọ: 0.5 ~ 1.5 mita, oniyipada da lori lẹnsi

Akoko idanimọ: kere ju 0.3 aaya

Agbara gbigbasilẹ: 80,000 awọn igbasilẹ aworan

Agbara oju: 30,000

Imọlẹ iboju: ≥400 cd/m2

Iyipada iyipada: Ijade iyipada 1, awọn ebute GPIO miiran le jẹ adani

Ni wiwo Nẹtiwọọki: 1 RJ45 10M/100M ibudo Ethernet adaptive, ibudo nẹtiwọki Gigabit asefara

Wiegand ni wiwo: 1 Wiegand ni wiwo input, 1 Wiegand ni wiwo o wu

USB ni wiwo: 1 USB ni wiwo bi ẹrọ

Ibaraẹnisọrọ ni wiwo: 1 RS485 ni wiwo

Kamẹra: Kamẹra binocular, ina ti o han ati infurarẹẹdi nitosi, ṣe atilẹyin wiwa ara laaye

Awọn piksẹli to munadoko: 2.1 million awọn piksẹli to munadoko, 1920*1080

Imọlẹ ti o kere julọ: awọ 0.01Lux @ F1.2 (ICR); dudu ati funfun 0.001Lux @F1.2 (ICR)

Ipin ifihan agbara-si-ariwo: ≥50db (AGC PA)

Ibiti o ni agbara jakejado: 120db, ISP algorithm apakan ifihan ti oju

Fidio fifidi: H.265 Ifaminsi Profaili akọkọ/H.264 BP/MP/HP fifi koodu/MJPEG fifi koodu

Iṣeto oju-iwe wẹẹbu: atilẹyin

Igbesoke latọna jijin ẹrọ: atilẹyin

Ọna imuṣiṣẹ: ṣe atilẹyin nẹtiwọọki gbogbogbo ati lilo LAN

Ṣiṣẹ otutu: -30 ℃ - +60℃

Ọriniinitutu ti n ṣiṣẹ: 0 ~ 90% ọriniinitutu ojulumo, ko si condensation

Ipele sokiri iyọ: Rp6 tabi loke

Antistatic: olubasọrọ ± 6KV, afẹfẹ ± 8KV

Ipese agbara: DC12V/2A

Anti-riot ipele: IK06

Ipele aabo: IP66

Agbara ohun elo: 20W (MAX)

Iwọn ohun elo: 240 (giga) * 128 (iwọn) * 28 (sisanra) mm

Awọn ẹya ara ẹrọ

Ṣe atilẹyin wiwa binocular ifiwe ara

Ṣe atilẹyin ipasẹ oju ati ifihan ti awọn eniyan gbigbe ni awọn agbegbe ina ẹhin to lagbara

algorithm idanimọ oju alailẹgbẹ, ṣe idanimọ awọn oju ni deede, akoko idanimọ oju ko kere ju 0.3s

Lilo ẹrọ ṣiṣe LINUX, eto naa jẹ iduroṣinṣin

H.265 fifi koodu kika ṣiṣan fidio ti wa ni taara sopọ si NVR ati awọn miiran ipamọ awọn ẹrọ nipasẹ ONVIF Ilana ati GB28181 Ilana.

Ṣe atilẹyin ibi ipamọ agbegbe ni kaadi TF, pẹlu ibi ipamọ igbagbogbo ti awọn aworan fun ọdun 1 ati awọn fidio fun oṣu 1 tabi ju bẹẹ lọ (da lori agbara ti kaadi TF aṣayan)

Itumọ akoko ṣiṣiṣẹ laarin awọn ikuna MTBF · 50000h

Ṣe atilẹyin awọn ile-ikawe afiwe oju 30,000+ ati awọn igbasilẹ idanimọ 80,000

Awọn ilana wiwo wiwo ọlọrọ, atilẹyin TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, Awọn ilana MQTT labẹ Windows/Linux ati awọn iru ẹrọ miiran

Ṣiṣẹ otutu: -30 ℃-60℃

IP66 mabomire ati eruku

Awọn atọkun hardware ọlọrọ (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch IPS ni kikun wiwo HD àpapọ, ko si smearing tabi idaduro ni awọn aworan

Ere aifọwọyi ati iwọntunwọnsi funfun aifọwọyi gba awọ otitọ ti aworan naa pada ni ti ara

Sensọ ipele ina dudu ti a ṣe sinu igbẹhin fun iwo-kakiri fidio, idanimọ ina kekere deede diẹ sii

Idinku ariwo 3D ati imọ-ẹrọ ilaluja kurukuru jẹ ki awọn aworan ibojuwo labẹ itanna kekere ti o ṣalaye ati alaye diẹ sii

Ṣe atilẹyin idinamọ apakan ti agbegbe fidio

Ṣe atilẹyin koodu ROI

Iwontunwonsi funfun aifọwọyi, iwọntunwọnsi funfun ọwọ wa

Ṣe atilẹyin idinku ariwo 2D ati idinku ariwo 3D

Ṣe atilẹyin imọlẹ fidio, itansan, hue, saturation, ati atunṣe gamma

Ṣe atilẹyin eto akoko ifihan aifọwọyi ti o pọju

Ṣe atilẹyin oju ifihan oye ati koju awọn eto imudara oye
